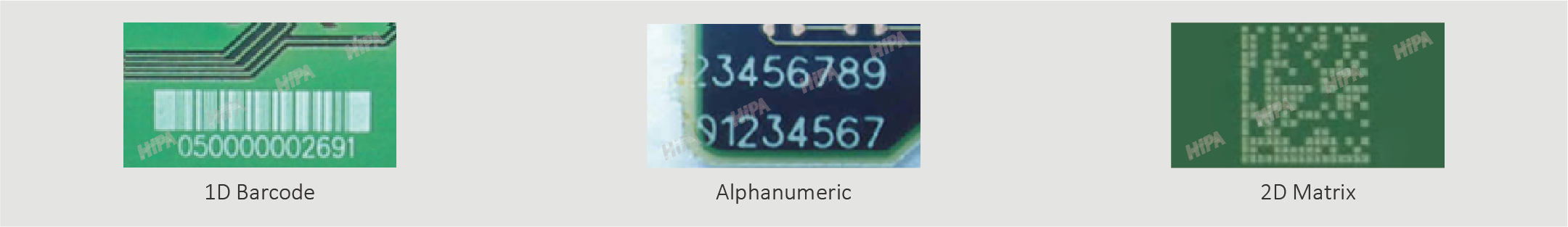

The Hylax HT7000 series PCB laser marking system is a cost effective tool to replace printed labels and other methods of having unique numerical codes on PCBs by marking serial numbers, barcodes, 2D matrix (e.g. for tracking purpose) and other text and even logo directly onto the PCB surface.
We are the pioneer in this application with more than 14 years of experience and hold a patent for “Using laser to mark on Printed Circuit Boards (PCBs)”.
Vision positioning and inspection
Marked data verification
High speed marking
User friendly window based software
Customizable for different board size and process flow
In-line and off-line configurable
Auto serialization
Group serialization
Multi-position and orientation marking
Integrated barcode reader
Compact size
Low maintenance
Vision positioning and Inspection
Cost saving -No consumables and minimal manpower involvement
Automated labeling -No manual labeling by operator
Accurate label position
Heat resistant -withstand high temperature
Excellent mark quality -No smudging of mark
Highly reliable mark quality
