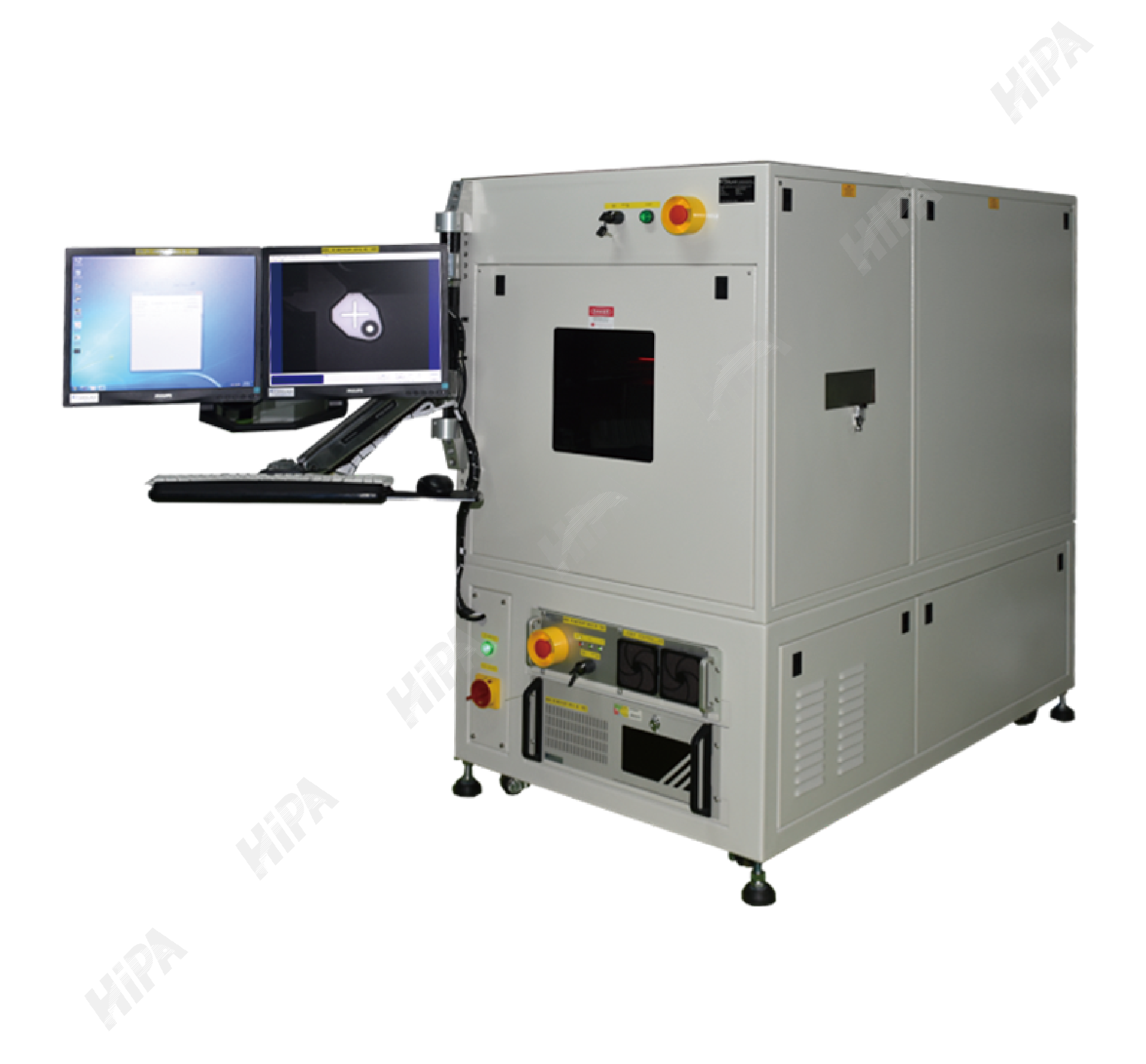

Innovative, versatile and cost effective Hylax PCB laser depaneling system is the latest PCB depaneling solution from Hylax technology integrated with the state of the art HT2000 series of UV laser systems. With precise laser energy control and fiducial recognition camera build in, the system is able achieve accurate and repeatable cutting processes. The conventional punching and routing methods.
Utilizing a process known as “cold ablation”, the HT2000 UV laser system will have an optimum cut quality with reduced heat affected zone (HAZ) that minimize burning, charring and other negative thermal and mechanical stress effects on the flex or rigid printed circuit board. The process has gain its popularity in many industries and becoming a viable alternative to replace.
如需中文資料請E-mail：james@hylax.com
Excellent cutting quality and high reliability
High accuracy and repeatability
Thermal and mechanical stress free process
Low utility cost and maintenance
Window based user friendly interface software
